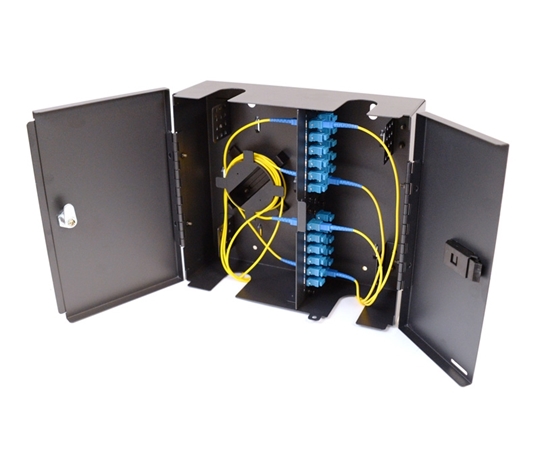

The WTB-FWM-6204 is a high density wall-mount fiber optic enclosure. The unit has 4 adapter panel positions allowing for a wide range of fiber termination connector types.It is equipped with a set ofkeys that allow access to the network side of the panel. If required a padlock can be added to the disribution side, maintaining seperation and security between the network and distribution sides of the termination panel.
Product Features
- 4 LGX Adapter Panels

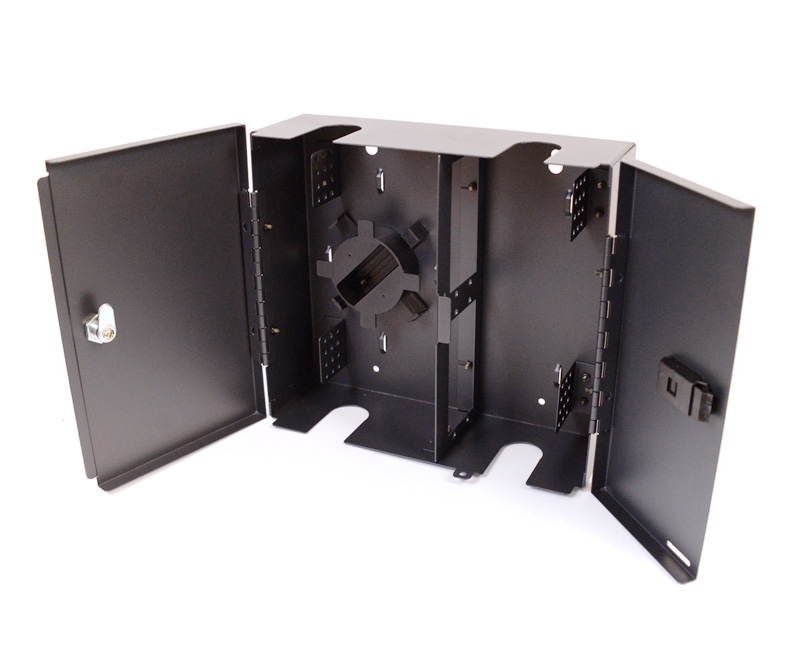

- 1 Slack Spool
- High Density
- Powder Coated

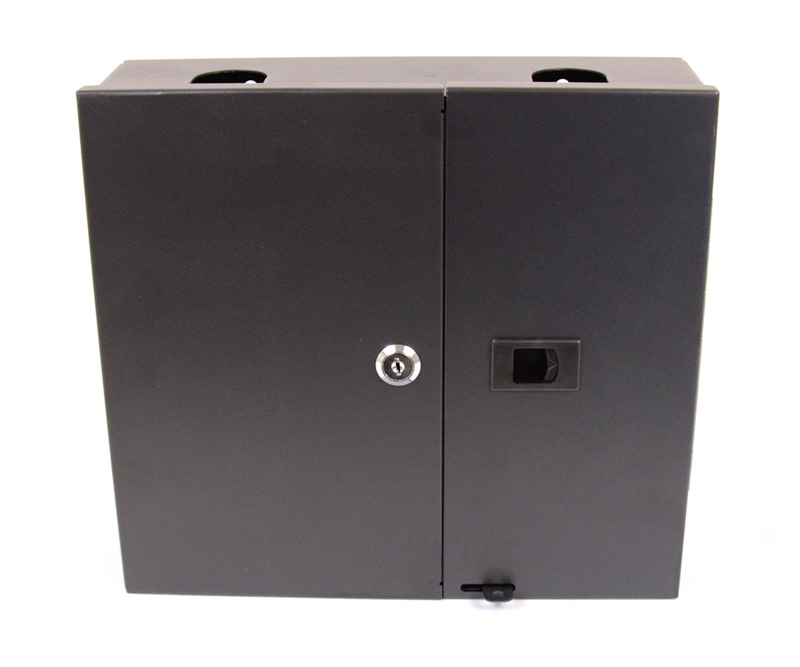

- 2Outer Doors
- Network Side Door is Key Locked
- Distribution Side Doorwith Padlock Option(Padlock not included)

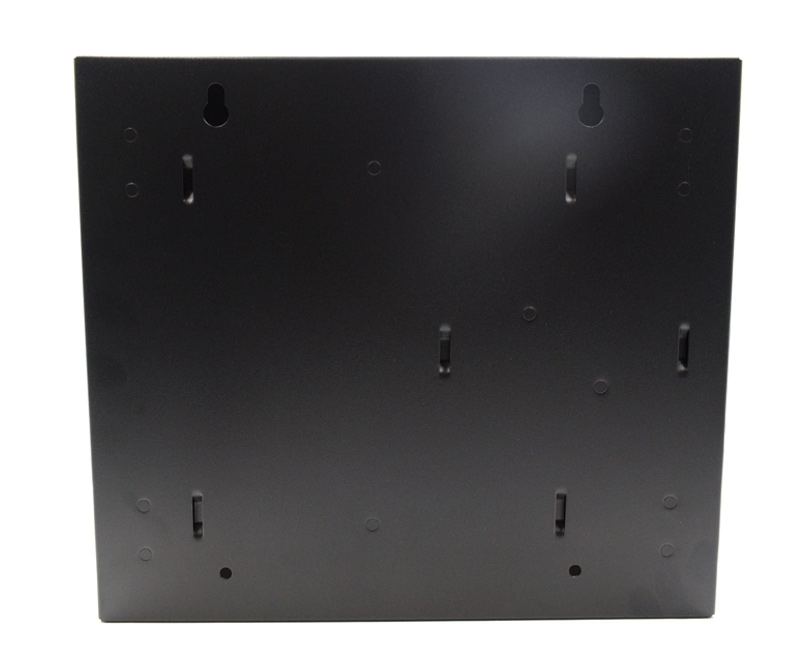

- Screw Holes on the Rear Panel
| Adapter Capacity | 04 LGX Adapter Panels |
| Ports | 4 Port 'U' Style - 38mm x 53mm (1.49" x 2.08") |
| Lockable | Yes |
| Type | Double Doors |
| Material | 16 Gauge Powder Coated Steel |
| Height | 280mm (11") |
| Width | 305mm (12.0") |
| Depth | 102mm (4.0") |
| Weight | 3.35kg (7.38lbs) |
| Color | Black |

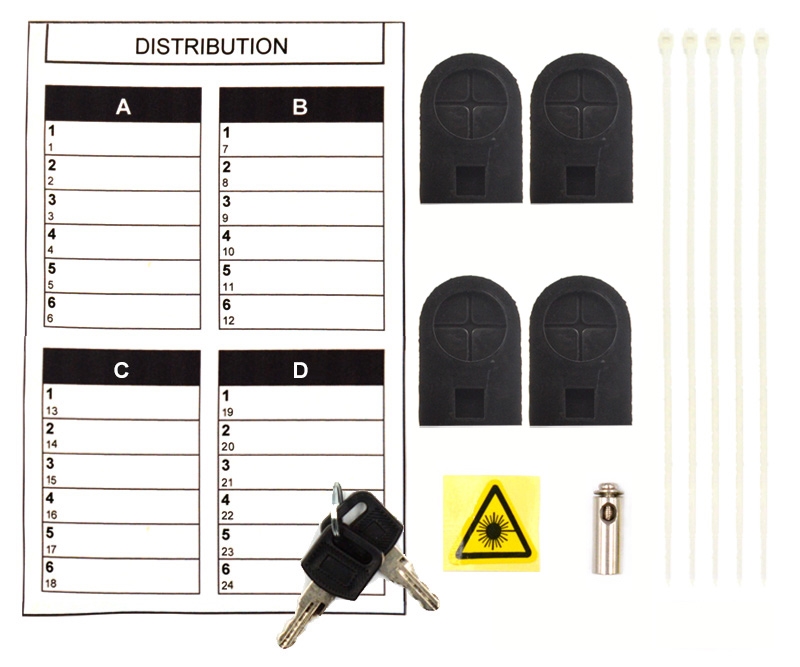

This enclosure is shipped with an accessory pack that includes the following:
- 2 x Keys
- 5 x Cable Ties
- 4 x Grommets
- 1 x Laser Warning Label
- 1 x Location Label
- 1 x Grounding Screw
Please Note: Mounting hardware is not included.
Frequently Asked Questions
Below are some of the more Frequently Asked Questions that we recieve. If you can't find an answer to your particular question you can always get in touch with us here.
Q: Are these in stock
A: Yes, we currently have stock of this product.
Q: Are adapter plates included
A: No, you can however purchase them separately here.
Q: Is mounting hardware included
A: No, there is no mounting hardware included with this patch panel.
