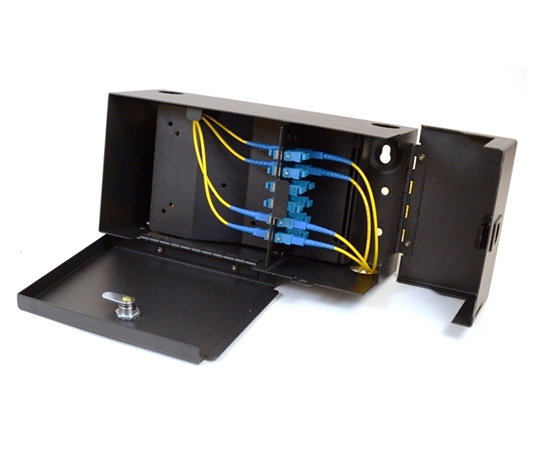

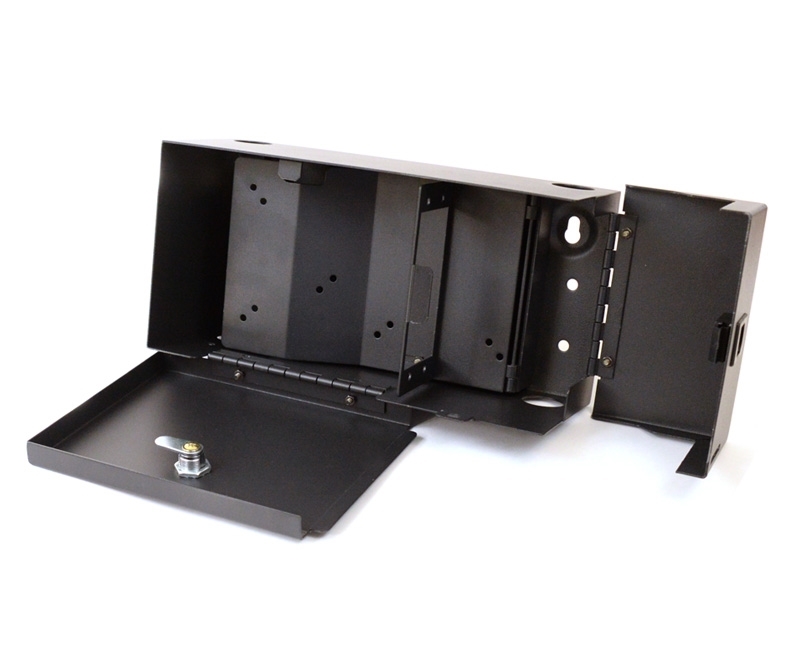

The WTB-FWM-012 is acompact, high-density wall-mount fiber optic enclosure. The unit has 2 LGX adapter panel positions allowing for a wide range of fiber termination connector types. The unit has an inner swing-out panel designed to store pigtail slack. It is equipped with a set ofkeys that allow access to the network side of the panel. If required a padlock can be added to the disribution side allowing for seperation and security between the network and distribution sides of the termination panel.
This patch panelis capable of holding1 MTP cassette, it is however not recommended.
Product Features
- 2 LGX Adapter Panels
- 1 Slack Spool
- Compact
- High Density

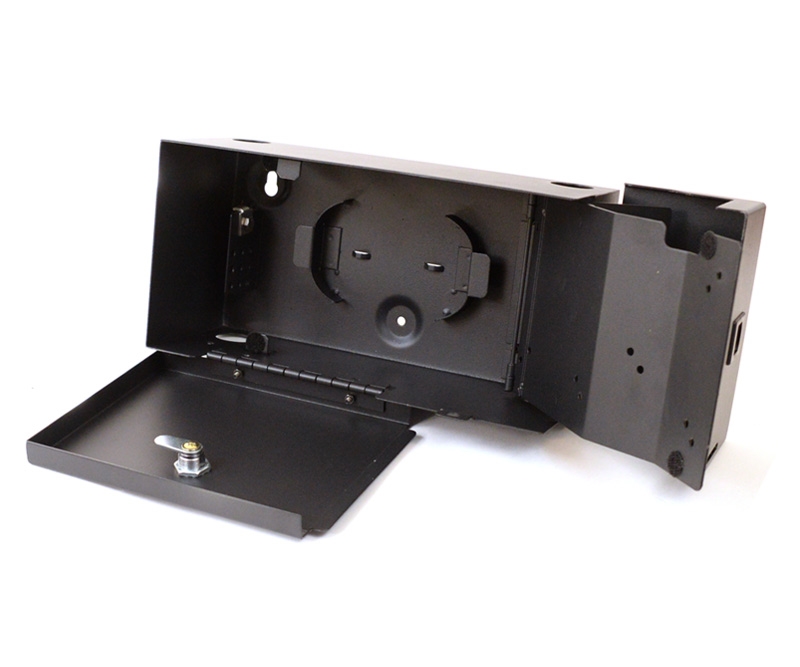

- Swing-out Panel
- Powder Coated

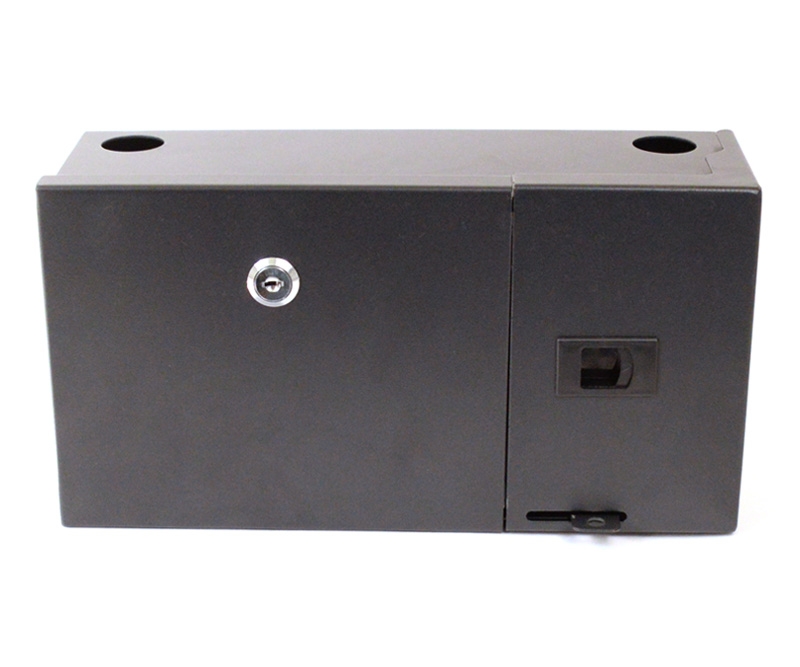

- 2 Outer Doors
- 1 Door with Keyed Lock
- 1 Door with PadlockOption(Padlock not included)

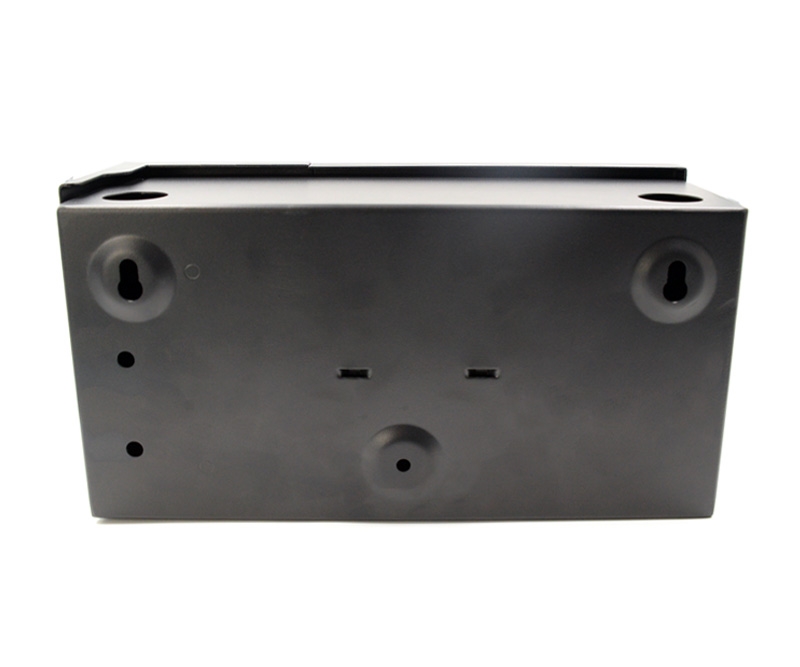

- Screw Holes on the rear panel
| Adapter Capacity | 02 LGX Adapter Panels |
| Ports | 4 Port - Ø30mm (1.18") |
| Lockable | Yes |
| Type | Double Doors |
| Material | 16 Gauge Powder Coated Steel |
| Height | 152.4mm (6.0") |
| Width | 304.8 (12.0") |
| Depth | 114.3mm (4.5") |
| Weight | 3.26kg (7.18lbs) |
| Color | Black |

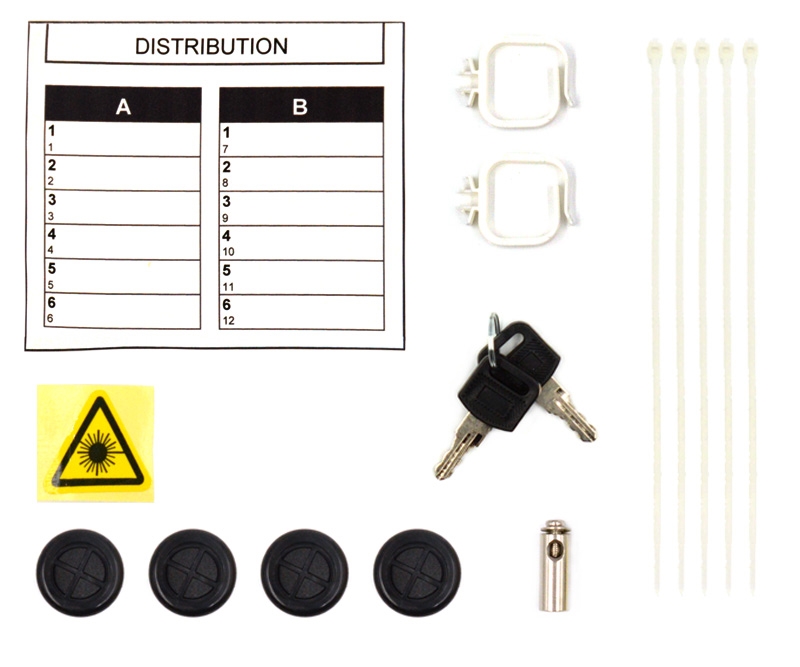

This enclosure is shipped with an accessory pack that includes the following:
- 2 x Keys
- 5 x Cable Ties
- 4 x Grommets
- 2 x Cable Management Rings
- 1 x Laser Warning Label
- 1 x Location Label
- 1 x Grounding Screw
Please Note: Mounting hardware is not included.
