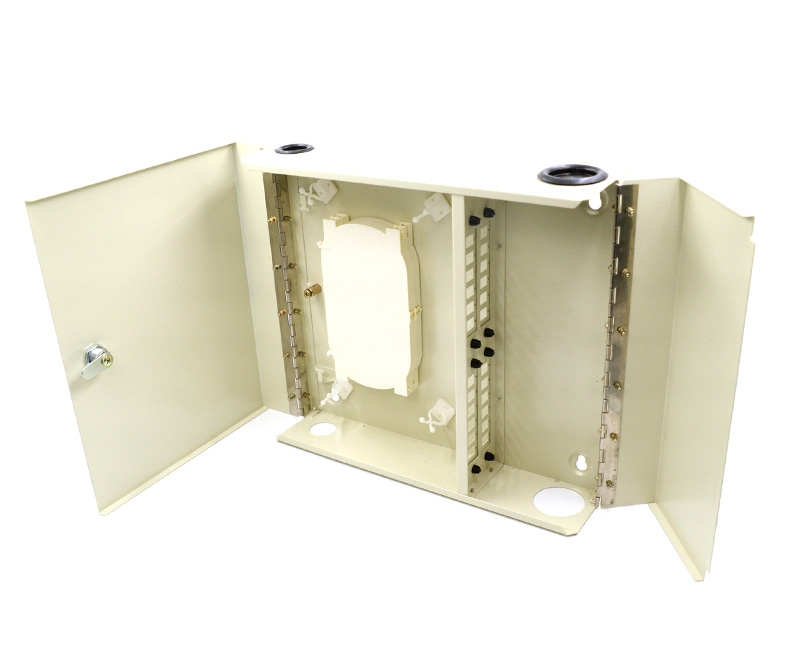

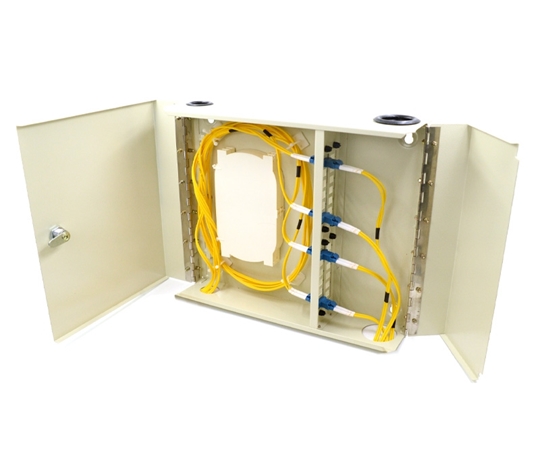

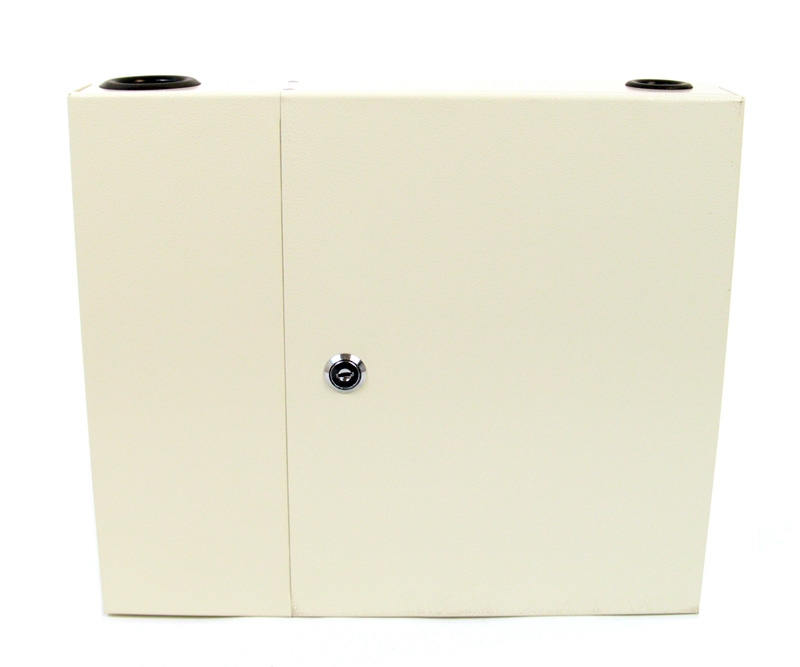

The FT-WTB-5BD-12-24 is a wall mount box designed for use in small capacity communication systems and features a sturdy and compact structure. The cabinet is composed of two parts, one links with optical cables for fusion connections between optical cable and fiber pigtails and anotherconnects with patch cords. It is wall mountable with lockable doors for added security. Various accessories help avoidavoid any unexpected damage to the fiber.
Termination boxes are suitable for jointing fiber with fiber pigtails, protecting fiber optic splices and helping to distribute. The terminal boxes are divided into a wall-mounting type, a fixed (rack-mounting) and flexible (drawing-out, pushing into) type terminal boxes, which mainly are used within telecommunication equipment rooms and network equipment rooms.
Product Features
- 4Adapter Holders with24 Adapter Slots
- High Density
- Electrostatic Spraying
- IndoorBox
- Patching and Splicing in one unit
- 2Outer Doors with keyed lock
| Adapter Capacity | 24 Adapters |
| Splice Trays | 02 Splice Trays |
| Splice Capacity | 24 Splices |
| Ports | 4 In Ports - Ø30mm (1.18"), 2 Out Ports - Ø50mm (1.96") |
| Lockable | Yes |
| Type | Double Doors |
| Material | Cold Roll Steel, Electrostatic Spraying |
| Height | 305mm (12") |
| Width | 355mm (14.0") |
| Depth | 90mm (3.54") |
| Weight | 3.45kg (7.60lbs) |
| Color | White |

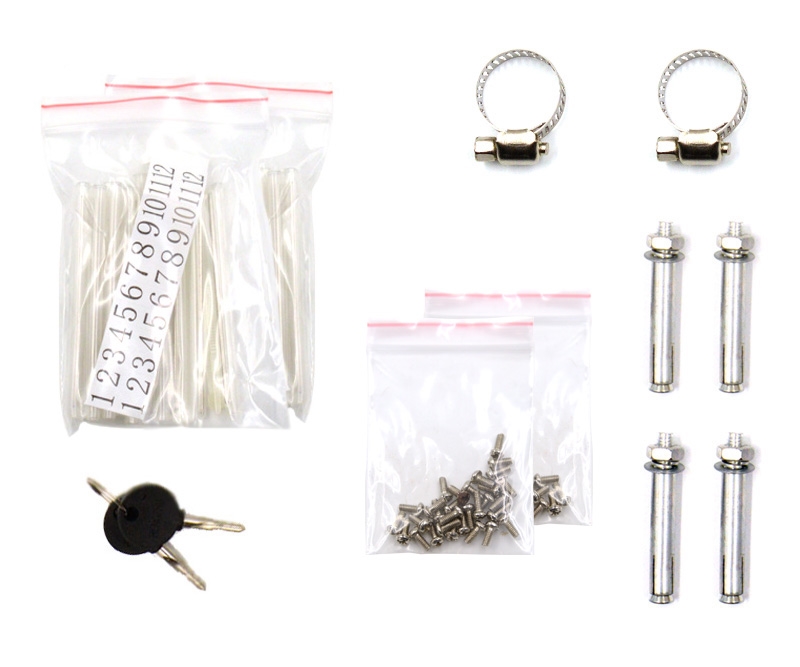

This enclosure is shipped with an accessory pack that includes the following:
- 2 x Keys
- 4 x Concrete Wall Anchors
- 2 x Steel Duct Clamps
- 2 x Packets of Adapter Screws
- 2 x Packets of Splice Sleeves, Cable Ties and Location Labels
