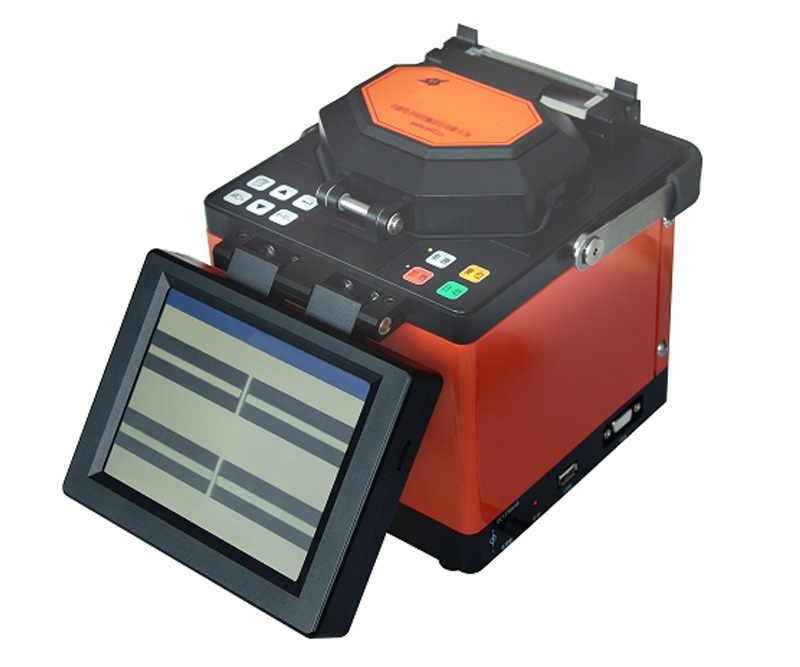

FO PROFESSIONAL-FS-8992 CORE ALIGNMENT FUSION SPLICER
Product Description
TheFS-8992 is a highly reliable and efficient fiber optic fusion splicer, designed for many areas of deployment. Equipped with a high-powered LED Digital Display, this machine is perfect for splicing even in dark environments. It comes equipped with a high-capacity Lithium Ion battery and an AC adapter and plug to complement it. Built-in sensors detect temperature, humidity, and air pressure to intelligently self-adjust for optimal splicing in many different environments. This splicer is suitable for all fibers up to 150µm clad and 1000µm coating.
Product Features
- 304x magnification, and the average splicing loss of less than 0.02dB for Singlemode and 0.01dB for Multimode.
- Equipped with fiber cleaver, standby electron, blower brush, bottle with siphon, fiber bracket and more, all enclosed in a quality tote kit.
- 8 Second splice time and a 25 second heat shrink time, allowing for rapid completion of projects.
Product Specifications
| Dimensions: | 150mm (W) / 160mm (D) / 140mm (H) |
| Weight: | 2.8kg (6.17lbs) |
| Applicable Fiber: |
|
| Cleave Length: | 8 - 16mm |
| Mean Splice Loss: |
|
| Ports: |
|
| Fiber Protection Sleeve Shrinking Time (Note 3): | 20mm / 40mm / 60mm Sleeves: Typ. 40 Seconds |
| Battery / Charger: |
|
| Magnification: |
|
