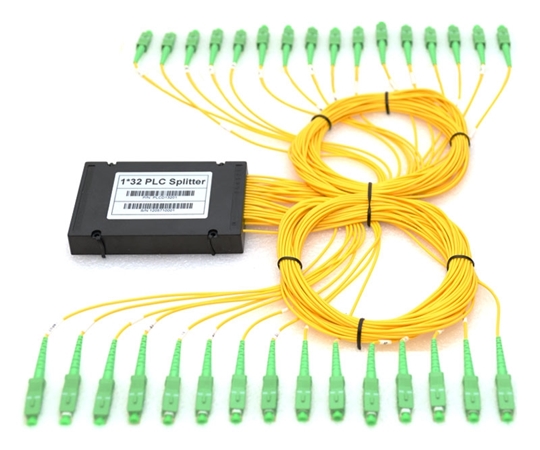

O2OFiber offers a variety of box and cassette type splitter modules and products. This PLC Splitter Module is a plastic module called a ABS box with ruggedized fiber jackets of 2mm and up to 3mm with no connectors. Customized designs are also available for customer needs,callore-mailus about anything you need that you don't see here.
Product Features
- 1 x Input Fibers
- 32 x Output Fibers
- Unconnectorized
- Ruggedized 2mm Jacket
- Length: 1.5 Meter Legs
- ABS Box Type Module
- Plug and Play Ready
- Low Insertion Loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- Telcordia GR-1221 and GR-1209
- Excellent Mechanical Stability
*Optional Custom Connector Configurations and Combinations Available Upon Request (Contact Us)
Applications
- Fiber to The Point (FTTX)
- Fiber to The Home (FTTH)
- Passive Optical Networks (PON)
- Gigabit Passive Optical Networks (GPON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
| Wavelength | 1260nm / 1650nm |
| Type | 1 x 32 |
| Fiber Type | Corning SMF-28e Fiber |
| Insertion Loss (dB) Max | <17.0 |
| Uniformity (dB) Max | <2.0 |
| PLD (dB) Max | <0.3 |
| Directivity Min | 55dB |
| Return Loss (dB) Min | 55 (50) |
| Operating Temperature | -40 ~ +85°C |
| Power Handling | 300mW |
| Length | 4.75" (120.65mm) |
| Width | 3" (76.2mm) |
| Height | 0.75" (19.05mm) |
