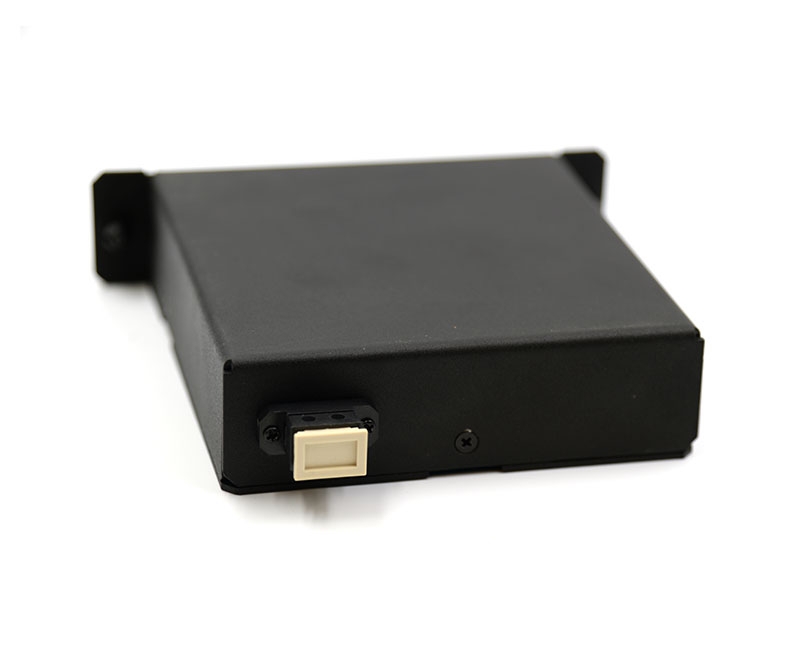

A 12 Fiber MTP/MPO cassette that has a LGX footprint and allows for the break-out to 12 SC connectors. The cassette uses a flat polish SC connector with low insertion loss.
Inside the cassette is a fan out/breakout cable assembly, making use of a Corning fiber in a ribbon configuration to 12 SC connections which then couple with 12 SC patch cables on the front of the cassette, and a MTP/MPO 12 APC connector on the rear of the cassette. The cassette can be installed in either a vertical or a horizontal MPO cassette holder
O2OFiber fiber optic MTP/MPO cassettes are an easy and low cost no-splice solution to transfer from multi-fiber cables to fiber optic patch cables without the use of splice on pigtails.
Our MTP/MPO cassettes are all made with high quality Corning fiber optic cable and are available in variours fiber modes: Single-mode (9/125um), Multimode OM1 (62.5/125um), Multimode OM3 (50/125um) and others. These cassettes also have many common fiber optic connector ports available, including: LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST fiber optic connectors. All O2OFiber MTP/MPO cassettes can be made with either Male or Female MTP/MPO connectors to suit your needs.
Product Features
- MTP/MPO Cassette Housing
- 12 SC (Duplex) Port on the front
- LGX Pin Spacing
- Corning Single-mode, OS2, 9/125
| Adapter Type | SC/UPC |
| Mode | Single-mode, OS2, 9/125 |
| MTP Gender | Female |
| Fiber Count | 12 Fiber |
| Type | LGX |
| Material | 16 Gauge Powder Coated Steel |
| Color | Black |
